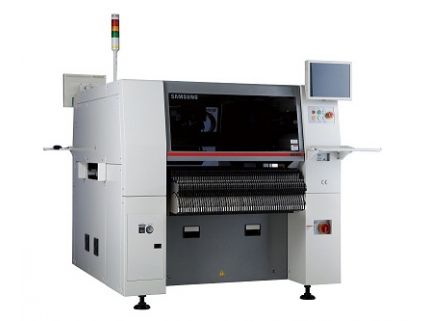

Flexible High Speed Chip Shooter

The high-speed Chip placement machine SM471 is each placement head is equipped with 10 shaft and double cantilever, high performance chip mounter model flying camera, the highest speed the realization of the products in the 75000CPH world.

The other, 0402Chip ~ - 14mm can basically corresponding, and through the application of high speed. High precision electric feeder, raise the production and quality of mount.

75000 CPH (Optimum)

2 Gantry x 10 Spindle/Head

Corresponding components: 0402 ~ - 14mm (H 12mm)

Corresponding to PCB: Max. 510 (L) x 460 (W) (Standard)

Max. 610 (L) x 460 (W) (Option)

High speed high precision electric feeder.

- can be used with SM air pressure type feeder mixing

SMART Feeder

- the world's first automatic feeding, automatic feeding

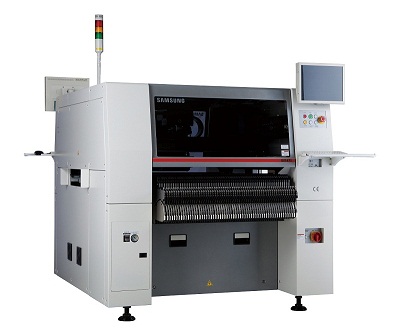

download: SM471_L.jpg
